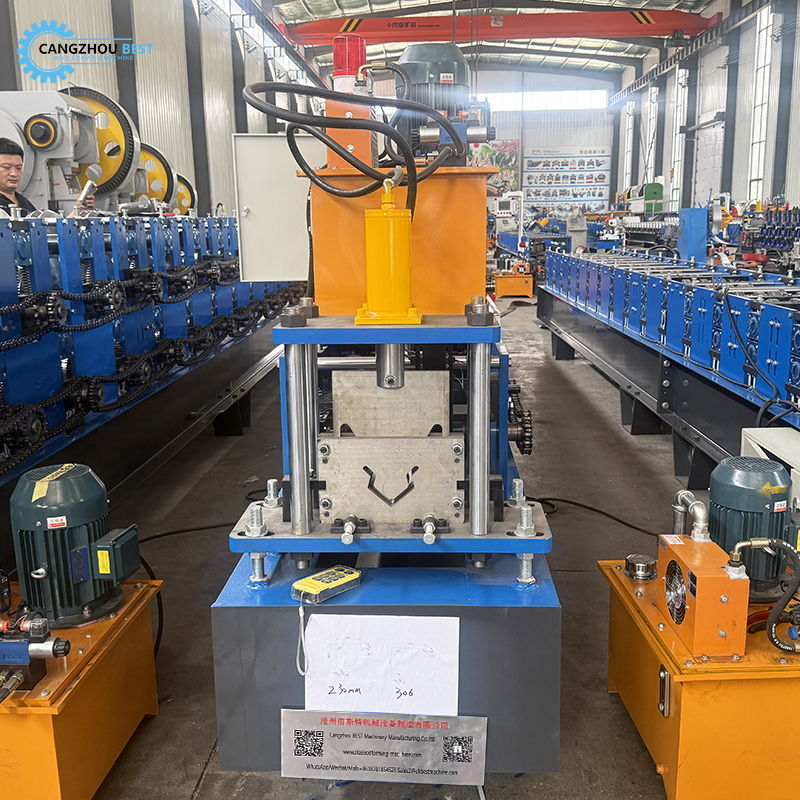

Customized Steel Profile PLC Control Auto Corner Edge Roll Forming Machine
Auto Corner Edge Roll Forming Machine
| o. |
Half Round Gutter Roll Forming Machine |
| 1 |
Suitable material |
GI, GL, Copper, Aluminum Coil |
| 2 |
Width of material |
530 mm or customized |
| 6 |
Thickness of material |
0.3-0.8mm, customized |
| 2 |
Working speed |
8~15m/min |
| 3 |
Main Motor power |
4 Kw |
| 4 |
Hydraulic station power |
4 Kw |
| 5 |
Electrical control system |
PLC control system |
| 7 |
Shaft diameter |
80mm |
| 8 |
Roller station |
16~18 stations |
| 10 |
Dimension |
Approx 8000x1200x1500mm |
| 11 |
Weight |
Approx 4 Ton
|
Auto Corner Edge Roll Forming Machine:
The Roll forming machine can manufacture various kinds of gutters profile to satisfy customers' required. Produced gutters are in fashionable outline and high superiority. Gutters are so mostly used in our daily life, so this machine will surely bring you a lot of profitable benefits to you.
Auto Corner Edge Roll Forming Machine:
• Polyurethane Drive Rollers
• Stainless Steel Forming Rollers
• Push Button RUN/JOG Controls at Entry and Exit Ends
• Forward Pulling, Easy Cut Shear
• Power Interruption Safety Circuit
• Two 360º Rotatable Reel Stands with Easy Lift Reels
• Welded Tubular Steel Frame
Auto Corner Edge Roll Forming Machine:
Our mission is to provide excellent custom gutter machines and tools for professional gutter installation and quality product at competitive prices, such as K-STYLE Gutter and Half Round gutter forming machines for Residential Gutter Machines and Commercial Gutter Machines with our patent design technology.
Half round Gutters are attached to the roof edges and used to draw water down and away from the house and its foundation. Most gutters consist of sections of gutter, drop outlets and downspouts. Gutters can be constructed out of aluminum, copper, galvalume, galvanized steel, copper penny aluminum, freedom gray copper, weathered zinc, copper plus, designer copper aluminum, lead coated copper, paint grip steel.
We have the gutter machines for various needs: K-style, Half-round, and Box, offers a wide selection of gutter machines and machines to cover both the residential and commercial industries. The custom gutter machine is according your requirement, gutter samples or drawings.
The new patented technical solution has allowed the remarkable reduction of the machine overall dimensions while guaranteeing top quality products in all materials (copper, zinc-titanium, pre-painted metal, zinc, aluminum, etc.)We design an innovative range of gutter machines for the production of half round gutters with traditional profiles and width 280, 333 and 400 mm.
Auto Corner Edge Roll Forming Machine
- Suitable material: Colored armor plate
- Thickness of the plate: 0.3-0.8mm
- Input width of the plate: Both decks is 1000mm
- Productivity: 12m/min
- Roller steps: 11 rows
- Roller material: 45# steel
- Diameter of active shaft: 70mm
- Wall thickness of the main forming machine: 12mm steel plate (final design depends on your final profile
- Main forming machine body: 300mmH steel
- Transmission chain is25.4mm, Reducer is 5.5kw Xingxing Cycloid which works stably and no noise.
- Cutting hydraulic system adapts CDF- 10 gear pump, the motor power is 4kw, no noise, work stably,
- PLC control system, easy to operate, high precision and work stably.
- Dimensions of major structure: 3800mm*600mm*1500mm
Components of Line:
No. Name Unit Qty
- Decoiler set 1
- Main machine for roll forming set 1
- Control system set 1
- Hydraulic system set 1
- Post cut set 1
- Output table set 2
